TGK-942 75W Kho Mobile Soldering Chaw Nres Tsheb nrog Fais Fab

Lus piav qhia luv luv:

Plug-in kub tuaj yeem tswj tau los tiv thaiv kev hloov pauv mus rau qhov kub thiab txias;suits cov ntawv thov uas tus qauv ua haujlwm yog qhov yuav tsum tau ua!

75W loj fais fab transformer yog siv;muaj zog ua kom muaj cua sov rov ua haujlwm ntawm cov khoom siv hluav taws xob loj loj tuaj yeem yog qhov tshwj xeeb yog tsim rau kev kub siab / qis kub thiab cov hlau lead-free soldering;

Fault signal detection.Lub chaw nres tsheb soldering yuav tawm tswv yim teeb meem txhaum cai thiab hais kom tus neeg teb xov tooj xyuas thaum lub taub hau ntawm cov lus qhia soldering qis dua qhov tsawg kawg nkaus qhia los ntawm lub tswb ntau lossis thaum tsis ua haujlwm, xws li cov tub ntxhais cua sov thiab lub rooj tsavxwm.


Product Detail

Video

Khoom cim npe

Input voltage AC 220 V
Rated zog 75w ua
Output voltage AC26V + 11V
Maximum instantaneous zog ≤120W
Standby lub zog ≤6W
Qhov kub thiab txias 200-480ºC, digital zaub, khawm hloov
Lub sijhawm cua sov Qhov kub ib txwm nce mus rau 350ºC <45 vib nas this
Kub ruaj khov tus nqi ± 5ºC
Kub deviation ± 10ºC ± 99ºC Ntxiv ntau qhov kev kho tus nqi
Soldering hlau taub rau hauv av muaj peev xwm <2 mV
Soldering ntsis tsis kam rau hauv av <2Ω
Lub zog cable specification 3Px 0.5mm² x 1.6m Cov khoom tom qab

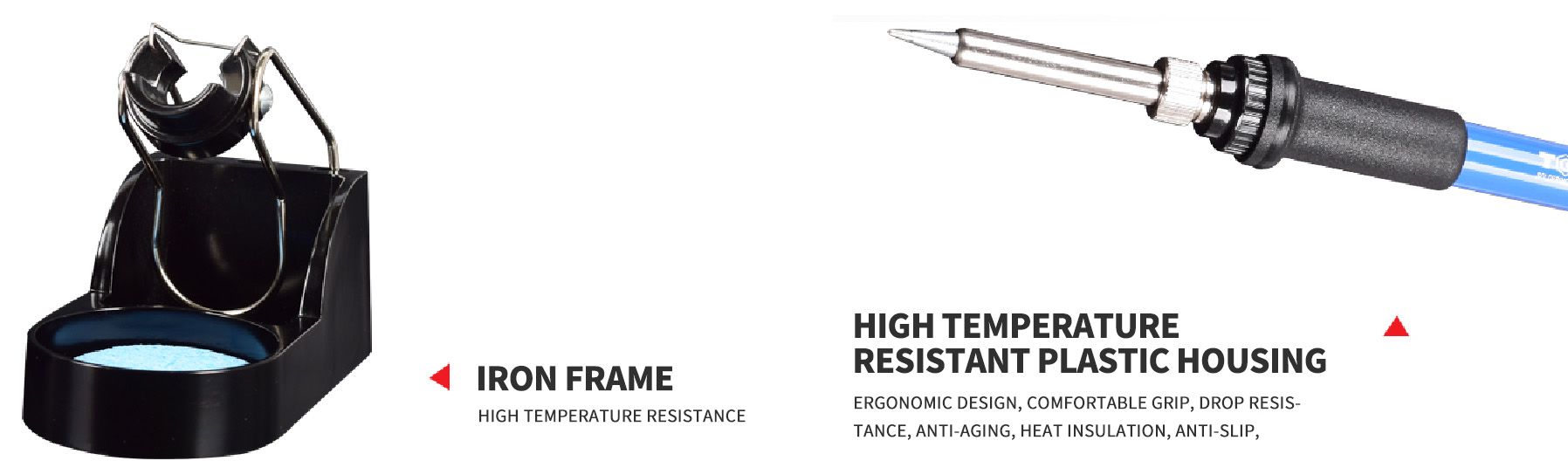

Kov hlau specification 5 cores txheej silicone puab cov khoom, ntev 1.2 meters
Soldering chaw nres tsheb kov 8-pin tshwj xeeb plug TGK-917

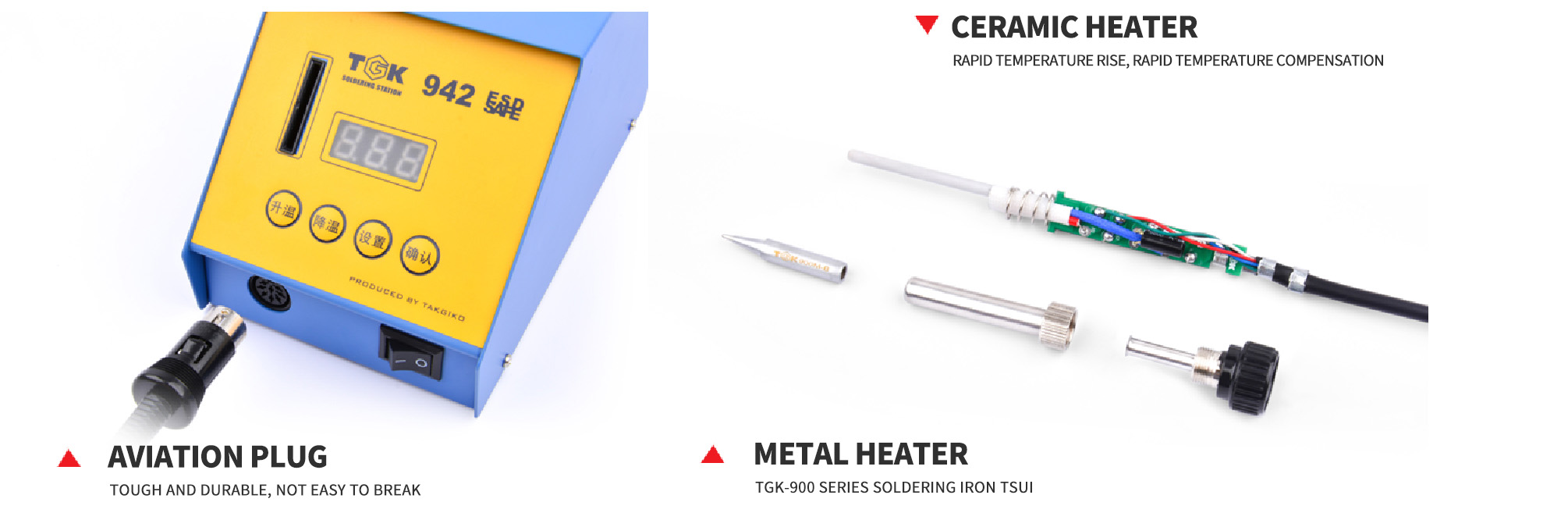

Cua sov tub ntxhais A1321 imported ceramic cua sov cor
Soldering hlau taub TGK-900M series (tus qauv TGK-900M-B)

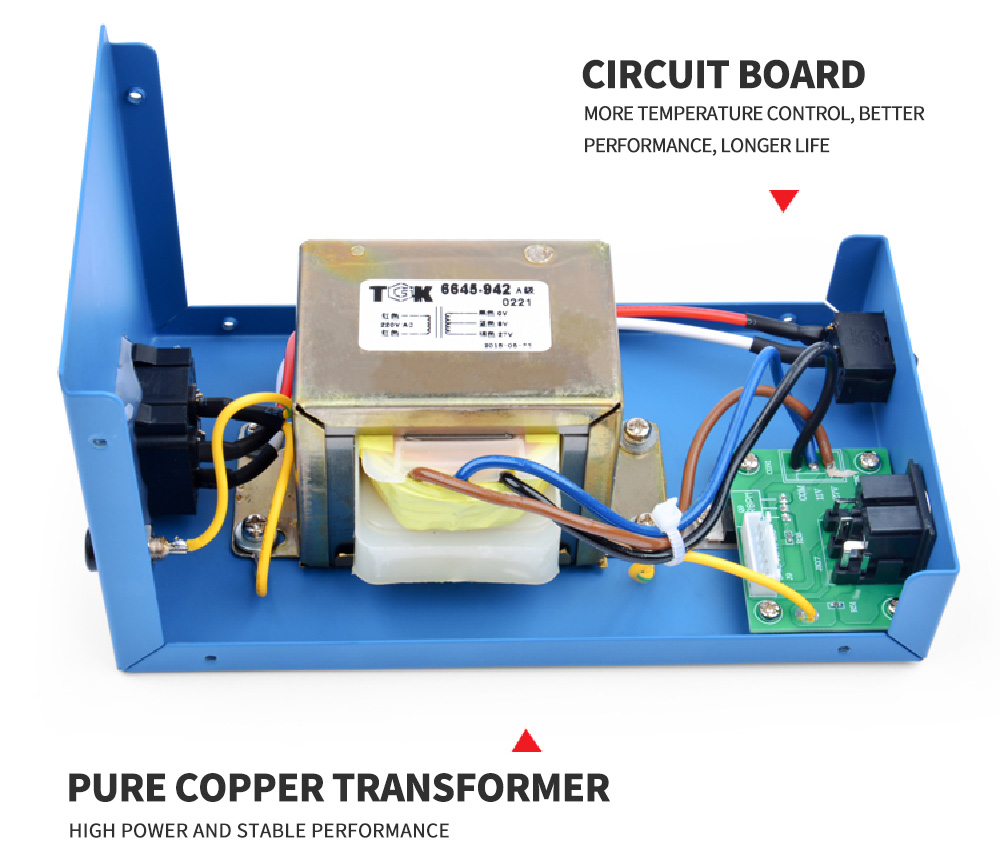

Hloov pauv Ntshiab tooj liab transformer 75W siab powe
Circuit Court qauv Intelligent digital display numerical control integrated circuit
Cov yam ntxwv tseem ceeb Cov duab digital, cov duab raug, nyeem tau yooj yim
Fault self-checking Heater puas LED screen zaub kom sai
Temperature lock function Smart card ntsuas kub hloov
Ntshiab tooj liab transformer, muaj zog txaus, cua sov ceev, thiab kub them <2 vib nas this
Tsawg kub tswb muaj nuj nqi pw tsaug zog muaj nuj nqi

Nta

1. Plug-in kub tuaj yeem tswj tau los tiv thaiv kev hloov pauv ntawm qhov kub thiab txias;suits cov ntawv thov uas tus qauv ua haujlwm yog qhov yuav tsum tau ua!

2. 75W loj fais fab transformer yog siv;muaj zog ua kom muaj cua sov rov ua haujlwm ntawm cov khoom siv hluav taws xob loj loj tuaj yeem yog qhov tshwj xeeb yog tsim rau kev kub siab / qis kub thiab cov hlau lead-free soldering;

3. Kev kuaj pom tsis raug.Lub chaw nres tsheb soldering yuav tawm tswv yim teeb meem txhaum cai thiab hais kom tus neeg teb xov tooj xyuas thaum lub taub hau ntawm cov lus qhia soldering qis dua qhov tsawg kawg nkaus qhia los ntawm lub tswb ntau lossis thaum tsis ua haujlwm, xws li cov tub ntxhais cua sov thiab lub rooj tsavxwm.

4. Digital kho muaj nuj nqi rau soldering ntsis kub, kho kub ntau yam: -50 ℃ to +50 ℃

5. Tsis siv neeg lub sijhawm thiab kaw haujlwm thaum tus neeg teb xov tooj tsis nyob.Ib qho qauv tsim los tiv thaiv zoo li qub tiv thaiv kev puas tsuaj rau cov khoom me me.

Daim ntawv thov

Vim nws lub zog siab thiab kub ceev nyiaj them lub tshuab no tshwj xeeb tshaj yog muaj txiaj ntsig zoo rau kev sib koom ua ke loj, kev kho vuam, thiab kev ua haujlwm nyuaj, ntxiv rau kev siv vuam dav dav.
